Compliant Storage for Class 3 Flammable Liquids

The FGC250 250L Flammable Liquids Cabinet is designed for the safe storage and segregation of Class 3 flammable liquids in workplaces that require compliance with Australian and New Zealand standards. Double-walled steel construction, V-groove shelving, and a bunded base work together to contain spills, reduce ignition risk, and support safe housekeeping practices.

Safety & Compliance

• AS/NZS 1940:2017 compliant. Meets Australian and New Zealand standards for the storage of flammable and combustible liquids.
• WorkSafe NZ approved. Multiple units supplied to customers requiring WorkSafe NZ approval.
• Designed for Class 3 flammable liquids. Solvents, fuels, thinners, paints, lacquers, and similar substances with a flashpoint up to 60.5°C (closed cup) or 65.6°C (open cup).

Cabinet Features

• Double-walled steel construction. Creates an insulating air gap that reduces heat transfer and enhances fire resistance.
• Bunded base. Captures leaks and spills for easy retrieval and cleanup. Prevents liquids from escaping the cabinet.

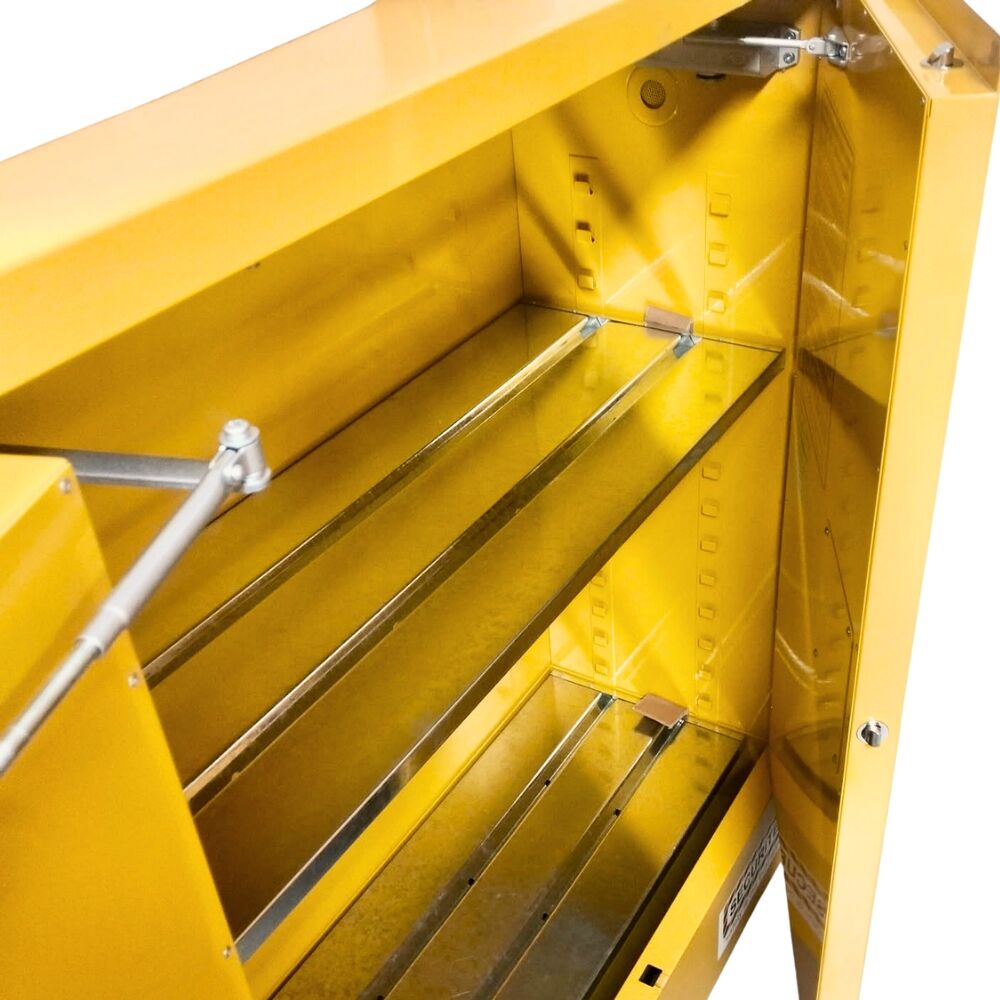

• V-groove channel shelves. Precision-formed channels provide greater structural strength than flat-sheet shelving and direct spilled liquids toward the drainage holes and into the bunded base.
• Punched drainage holes. Strategically placed to efficiently channel spills from shelves into the bunded base.
• Flame-arrestor vents. Integrated vents fitted with flame-arresting mesh for controlled ventilation and ignition prevention.
• Earthing points. Dissipates static electricity to reduce ignition hazards.
• 3 adjustable shelves. Height-adjustable for flexible configuration to suit different container sizes.
• Adjustable feet. Ensures stable placement on uneven surfaces.
• 2 doors. Secure closure keeps contents contained and access controlled.

Specifications

• Capacity: 250 litres
• External dimensions: 1100(L) x 500(W) x 1825(H)mm
• Net weight: 146kg

Where It's Used

Workshops, laboratories, industrial facilities, transport hubs, manufacturing plants, and any compliance-driven environment where Class 3 flammable liquids need to be stored safely and in accordance with AS/NZS 1940:2017.

Accessories

Replacement or additional shelves are available separately. See the Spare Shelf to Suit FGC250 if you need to replace a shelf or add extra storage levels.

Need to protect multiple bays across a site? Get in touch for a bulk quote.
